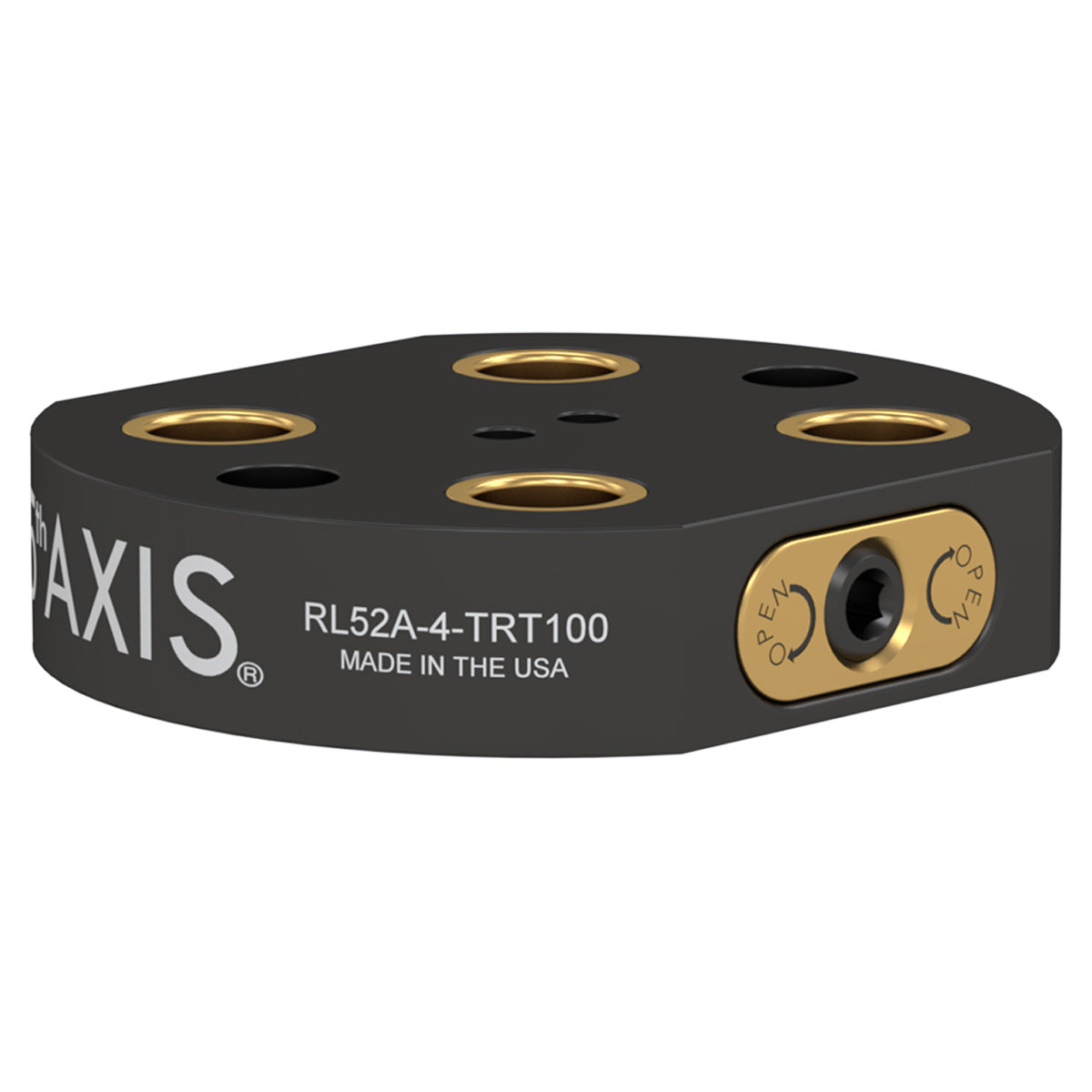

Zero-Point Plate - 52mm - RockLock Ø116mm x 25mm

- 52mm Low Profile Base, Aluminum (Mounting: 2x 5/16"" at 180° on 82.98mm PCD)

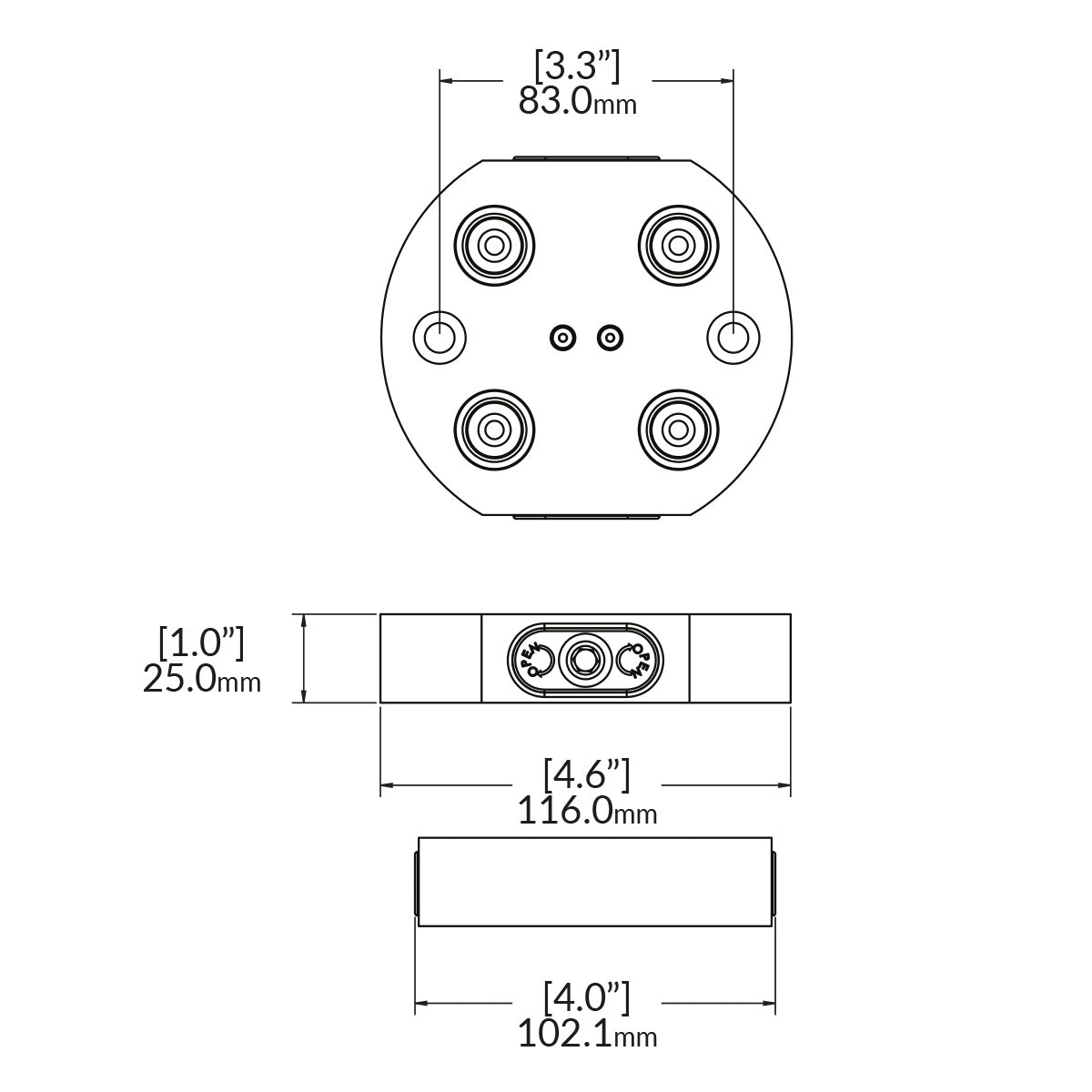

- Size: Ø116mm x 25mm
- Material: Aluminum (A)
- Mounting: 2x 5/16"" at 180° on 82.98mm PCD
- Maximize changeout efficiency with the RockLock system
- Zero-point pitch = 52mm
- Diameter of clamping studs = 16mm (PS16F)
- Zero-point pitch = 52mm
- Diameter of clamping studs = 16mm (PS16F)

This circular RockLock adapter is built for the Haas TRT100 trunnion.
Repeatability of +/- 8 µm.
