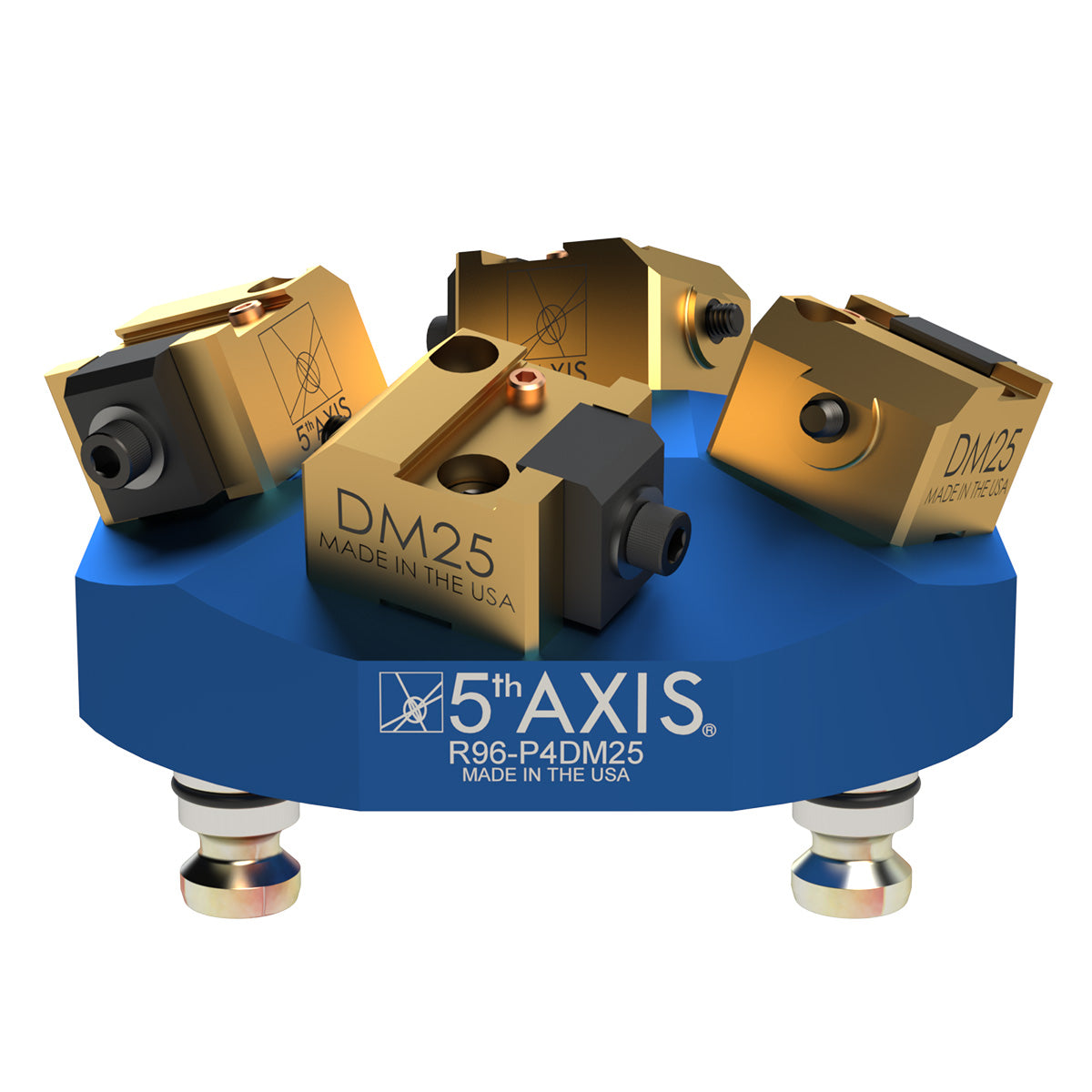

Dovetail clamping device - Pyramid 4 x DM25 - Ø152mm x 65mm

- DM25 4 Position Dovetail Top Tooling (96mm)
- Size: Ø152,4mm x 64,9mm
- Fixture: 4x DM25
- Pull studs: 4x PS20F
- Top Tooling Size: Ø152,4mm x 64,9mm
- Fixture Size: 37mm x 41mm x 27mm
- Fixture Material: 4100 Series Steel
- Dovetail Required Depth: 2,54mm
- Zero-point pitch = 96mm
- Diameter of clamping studs = 20mm (PS20F)
