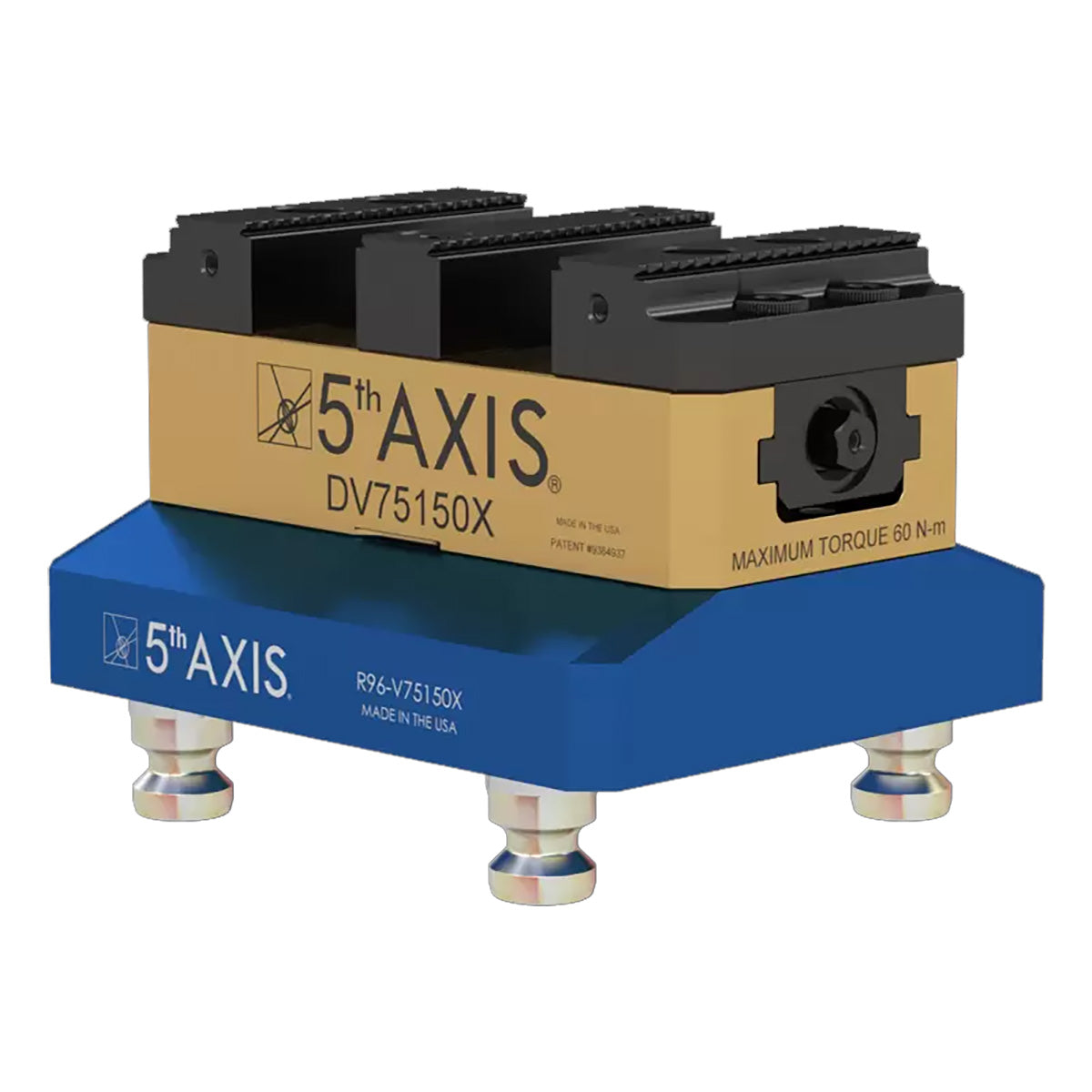

Dual Clamping Vise 126mm x 150mm x 88mm

- DV75150X Double Station Vise Top Tooling
- Pull Studs: 4x PS20F

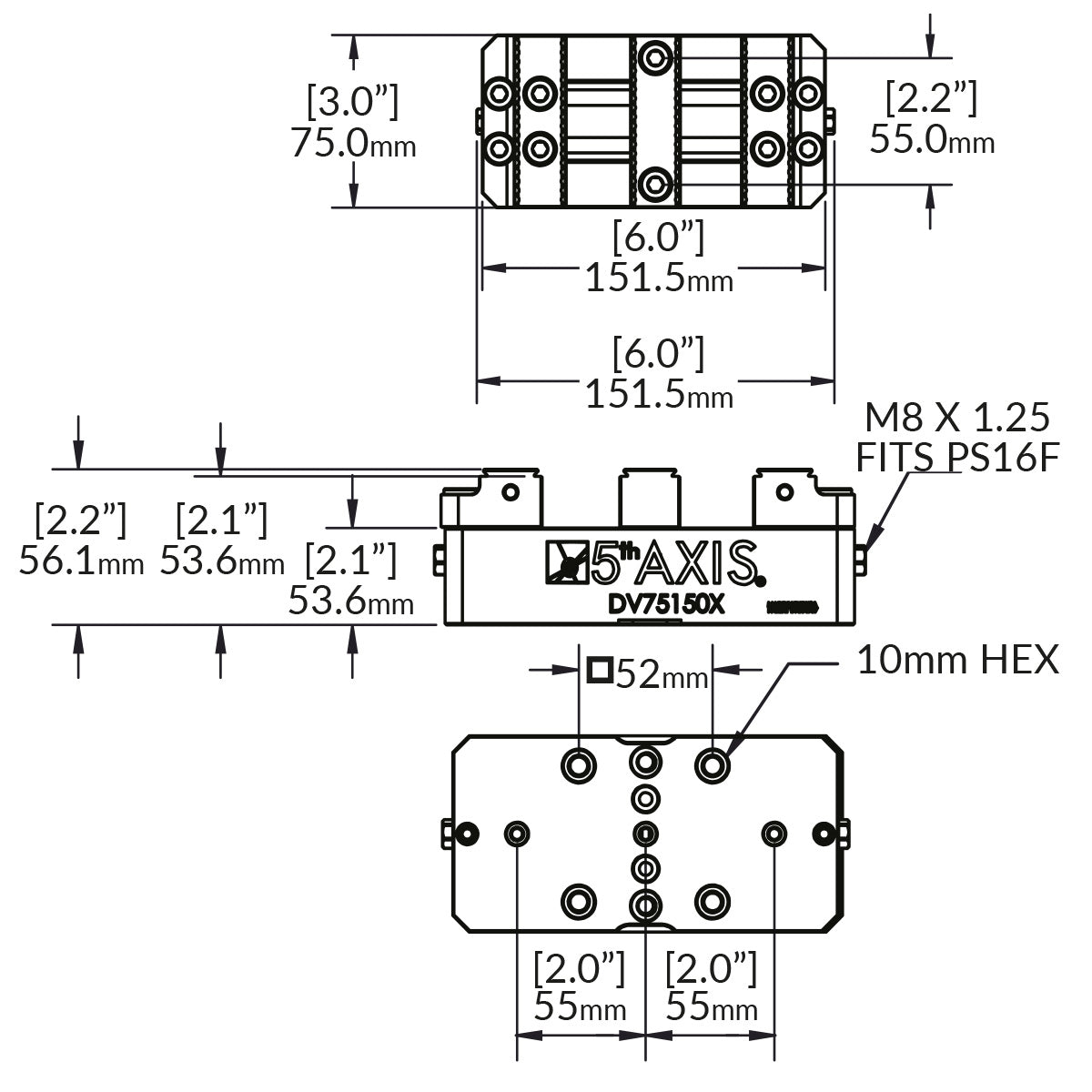

- Top Tooling Size: 125.73mm x 151.13mm x 87.88mm
- Fixture Size: 75mm x 150mm x 56mm
- Fixture: DV75150X-J1
- Jaw Width: 75mm
- Clamping Force: 13.5 kN @ 60 Nm
- Max Torque: 60 Nm
- Clamping Range (Jaws Forward): 0 - 37.02mm
- Clamping Range (Jaws Reversed): 17.26mm - 55.02mm
- Zero-point pitch = 96mm
- Diameter of clamping studs = 20mm (PS20F)
