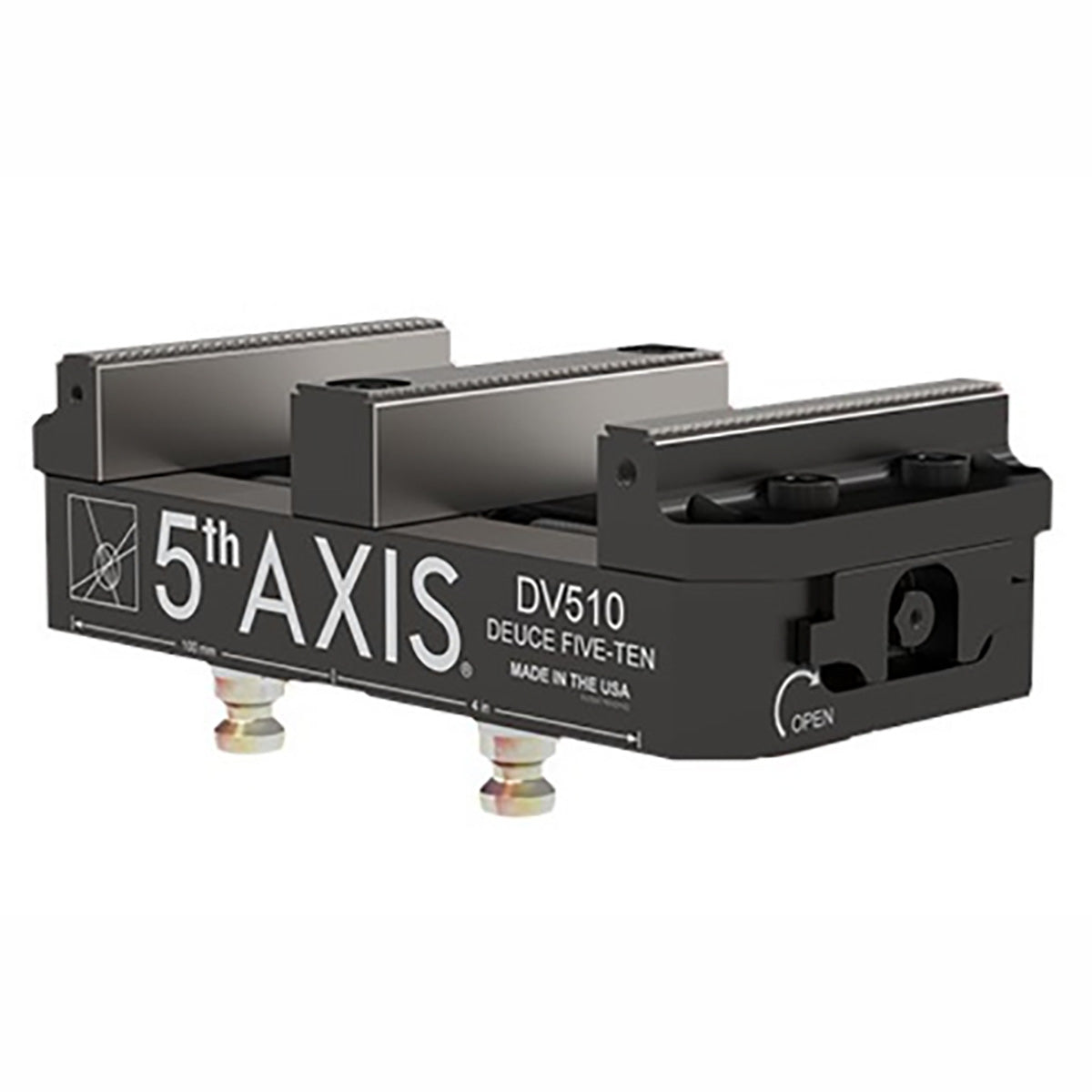

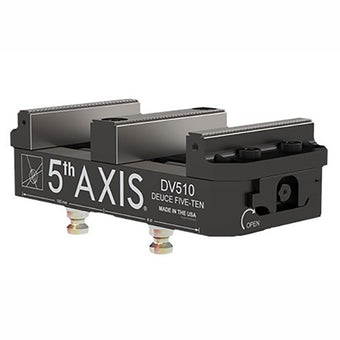

Dual Clamping Vise DV510-J4 126mm x 258mm x 73mm

- R96-DV510-J4 Dual Clamping Vise

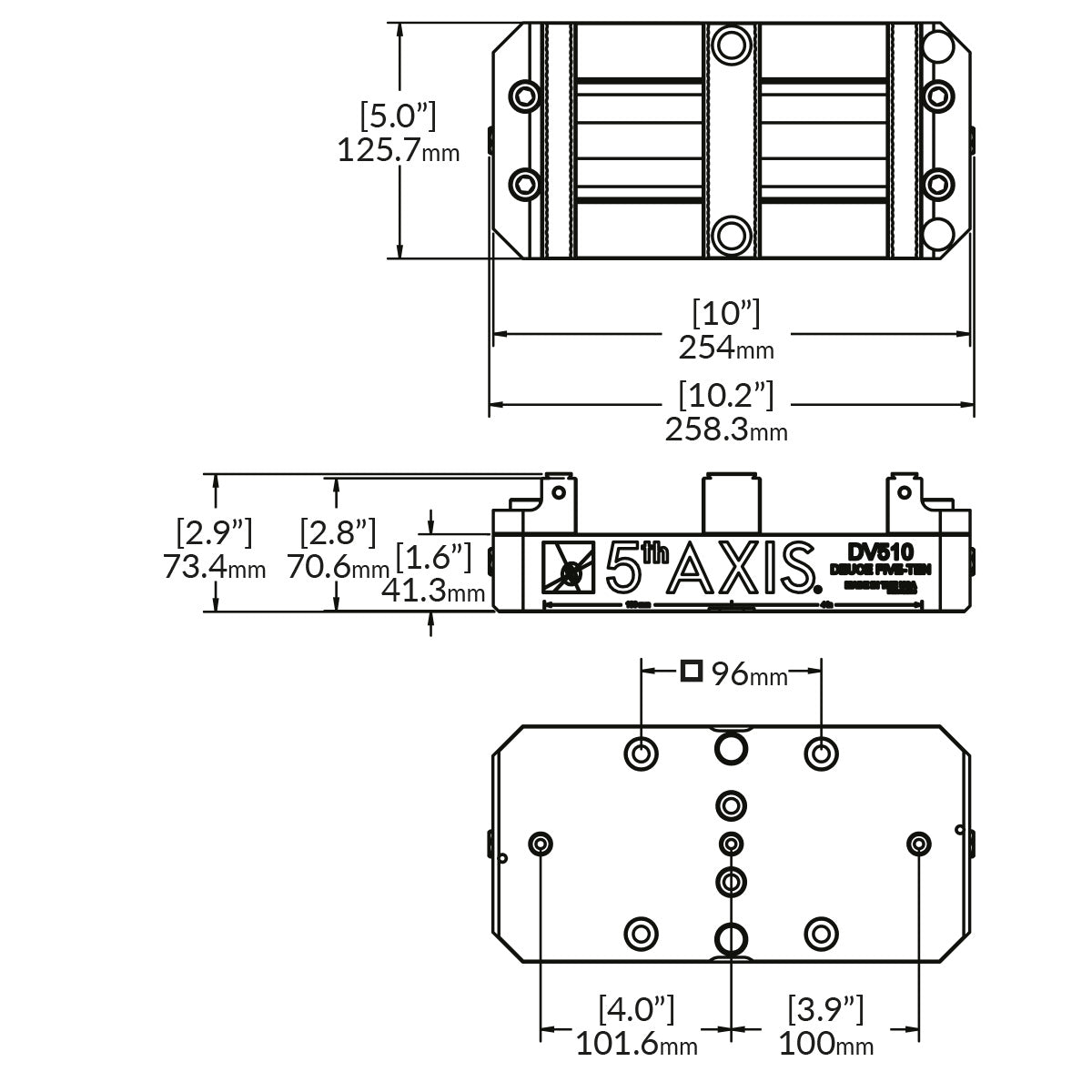

- Size: 125.7mm x 258.3mm x 73.4mm
- Fixture: DV510-J4 (narrow center jaw)
- Pull studs: 4x PS20F
- Top Tooling Size: 125.7mm x 258.3mm x 73.4mm
- Fixture Size: 125.7mm x 258.3mm x 73.4mm
- Jaw Width: 125.7mm
- Clamping Force: 20.0 kN @ 75 Nm
- Max Torque: 75 Nm
- Clamping Range (Jaws Forward): 0 - 66.7mm
- Clamping Range (Jaws Reversed): 30.9mm -102.3mm
