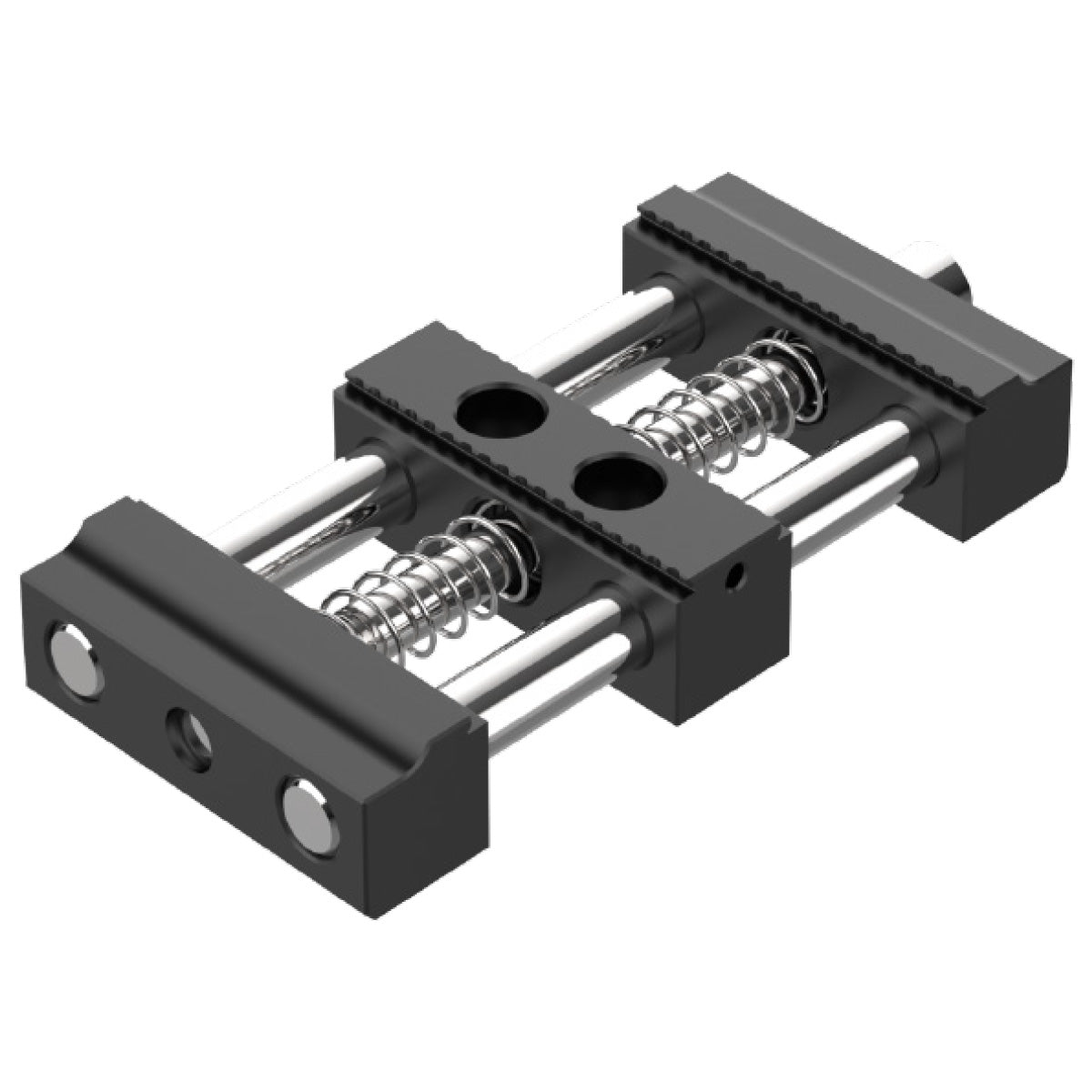

Doppel- Self-Centering Vise (Pin vice) Jaw width 75mm

- Pin Vise (75mm x 161.1mm x 25mm)
- RockLock™ compatibility: 96mm
- The double-station pin vise
- Extreme low-profile design
- Light weight
- Great for tombstones + Automation
- Serrated gripper teeth with optional dovetail built in
- Direct mount from top down with SHCS and Dowels
- Jaw Width: 75mm
- Clamping Range: 150: 1.85" - 2.25", 130: 1.50" - 1.85", 100: 1.00" - 1.40", MAX: 2.50"
- Max Torque: 47,5 Nm
- Clamping Force at Max Torque: 418,94 Nm
- Note: *PVX3-6A pin vises come with three different bolt lengths to provide different clamping range options.
