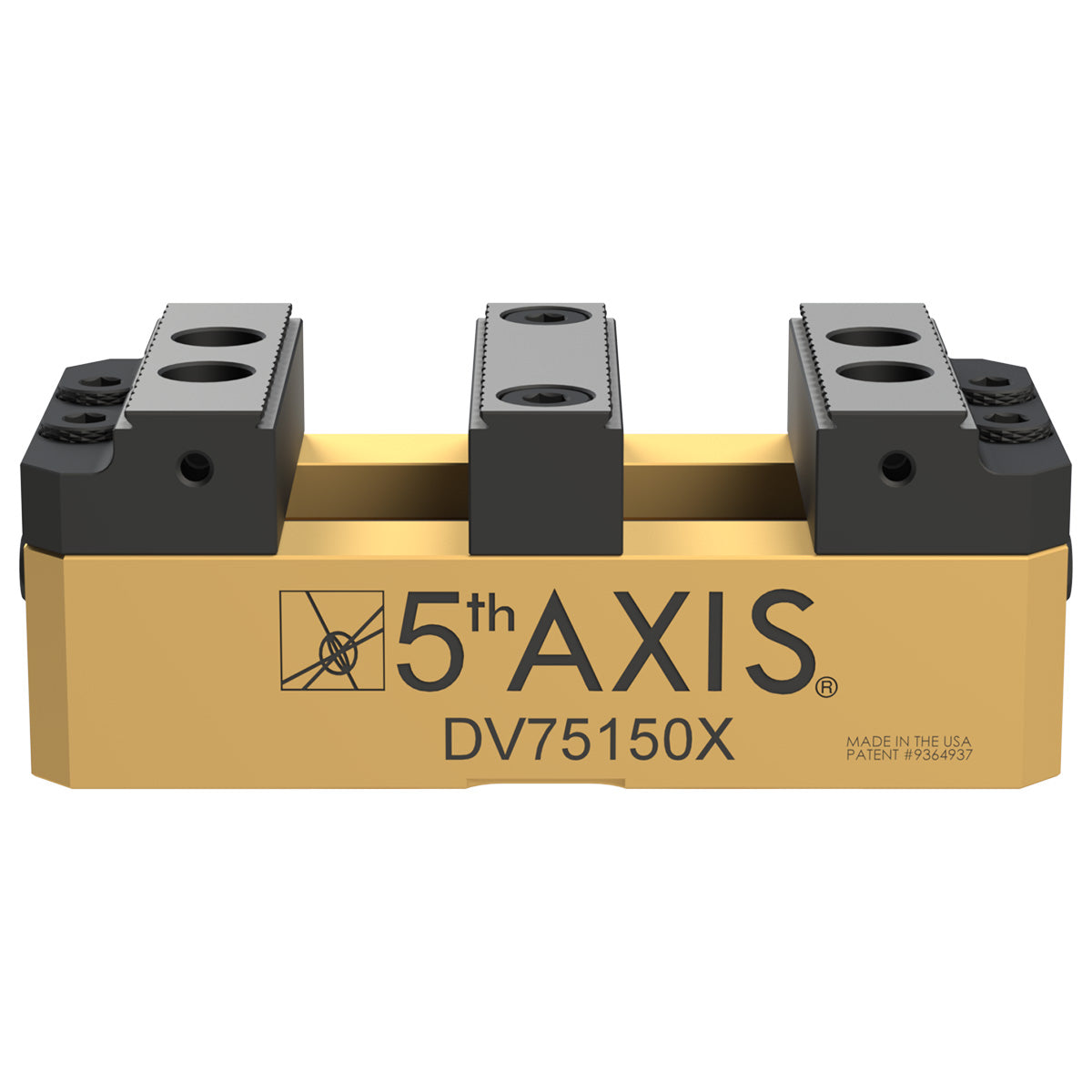

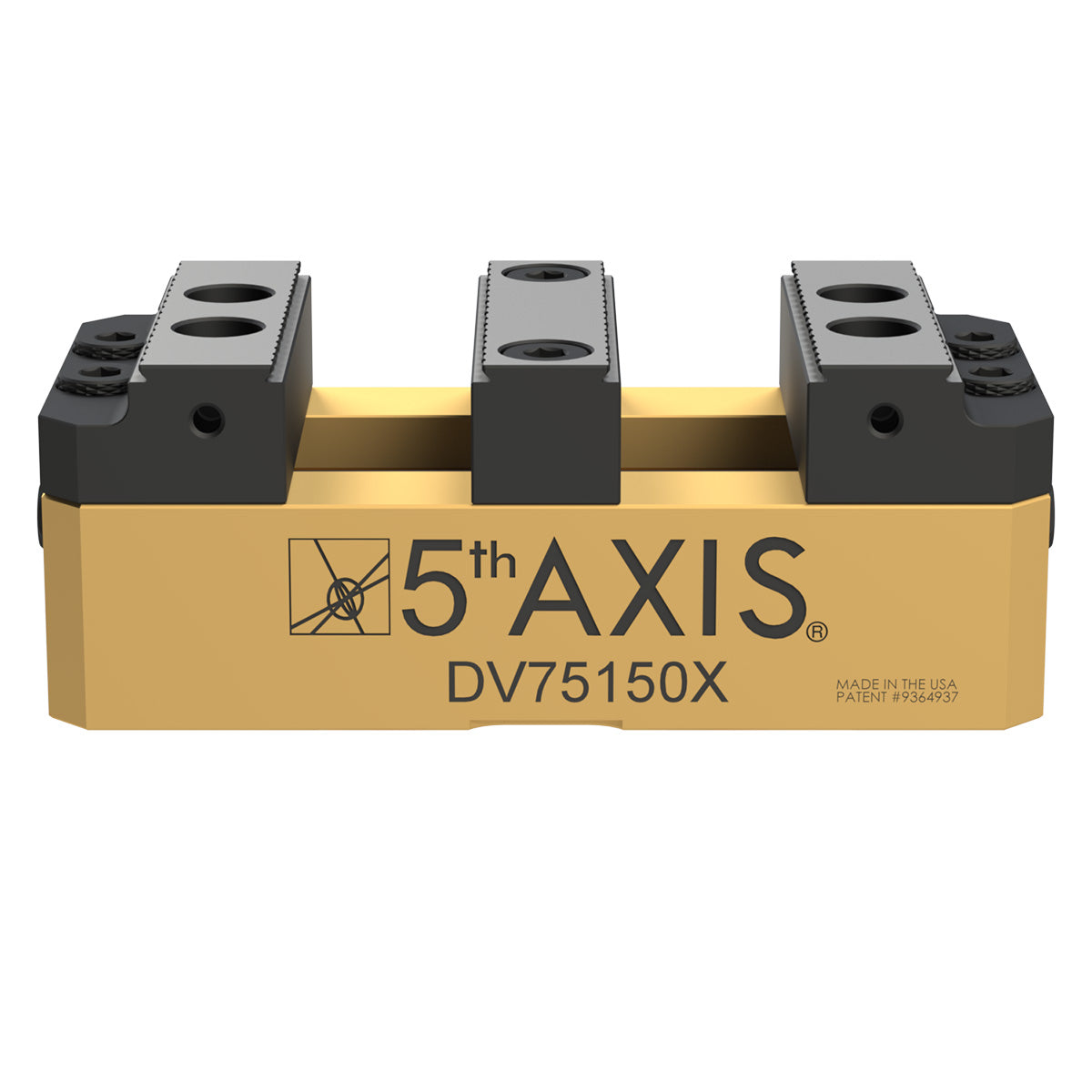

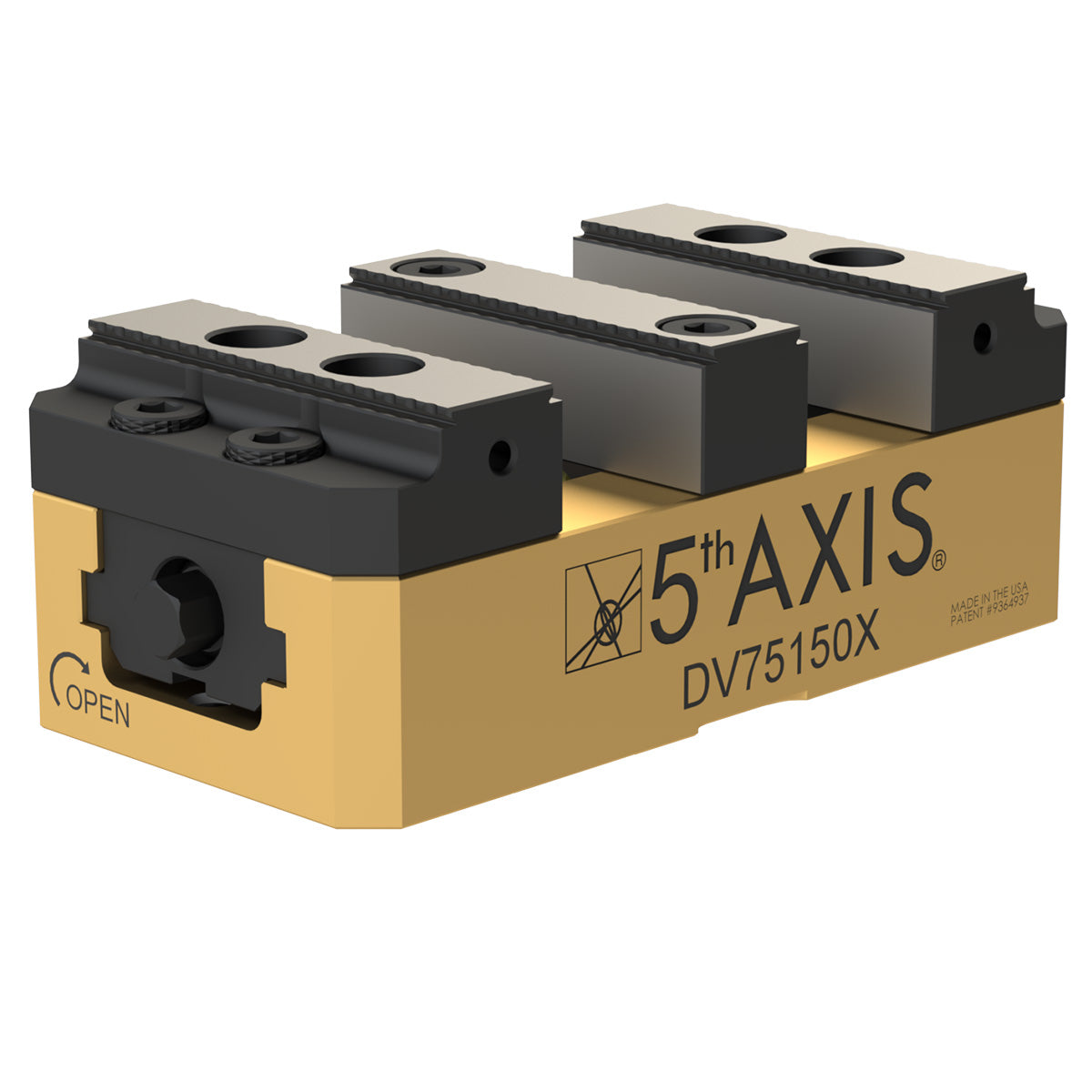

Dual Clamping Vise 75mm x 150mm x 56mm

- Small Double Station Vise

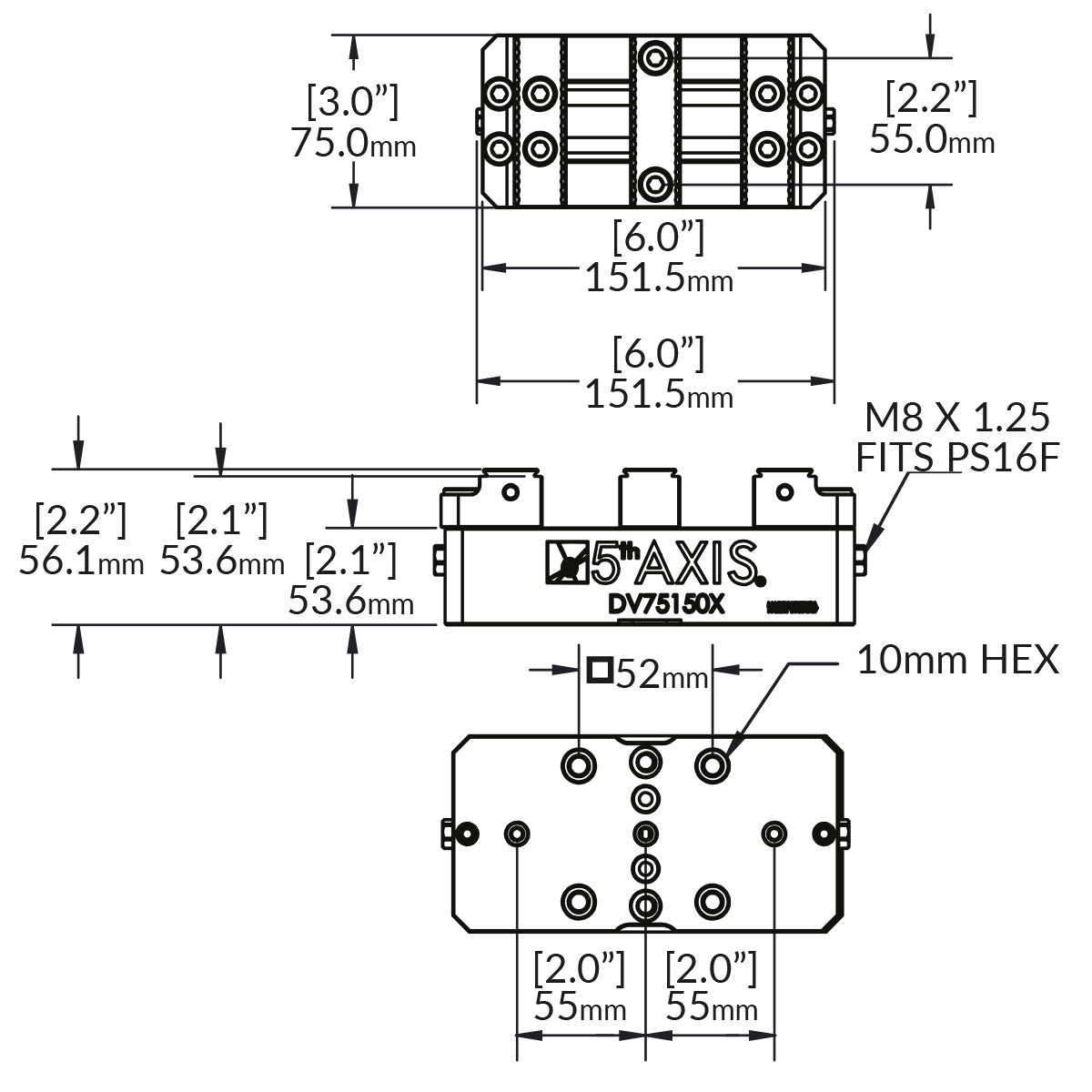

- Size: 75mm x 150mm x 56mm
- RockLock™ compatibility: 52mm, 96mm
- The double-station version of the V75150X
- 45° dovetail and gripper teeth built into hard jaw
- (Cannot be used in single fixed jaw configuration)
- Jaw Width: 75mm
- Clamping Force: 22.0 kN @ 60 Nm
- Max Torque: 60 Nm
- Clamping Range (Jaws Forward): 0 - 37.02mm
- Clamping Range (Jaws Reversed): 17.26mm - 55.02mm
- Note: *Cannot be used in single station fixed jaw configuration*
- Zero-point pitch = 52mm
- Diameter of clamping studs = 16mm (PS16F)
