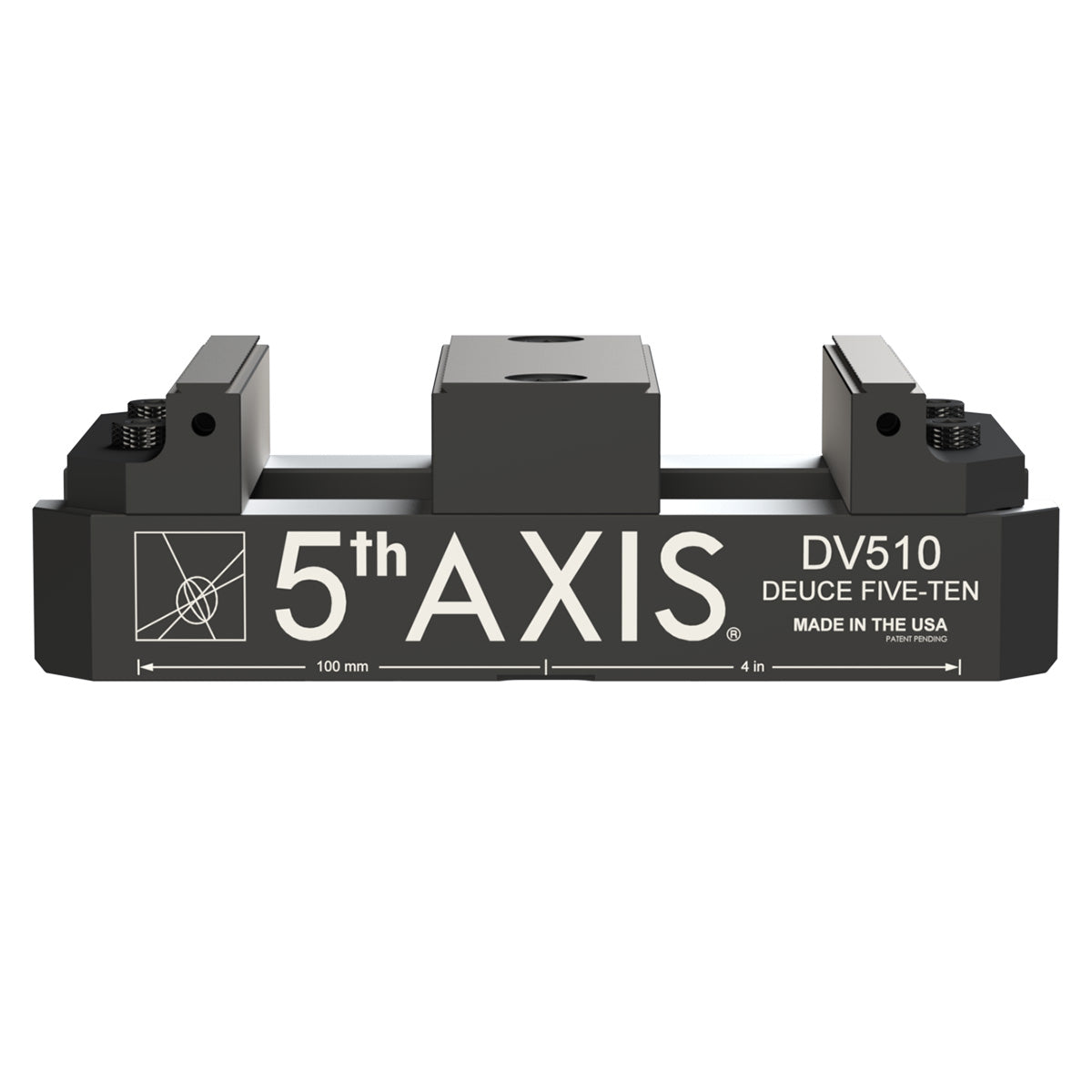

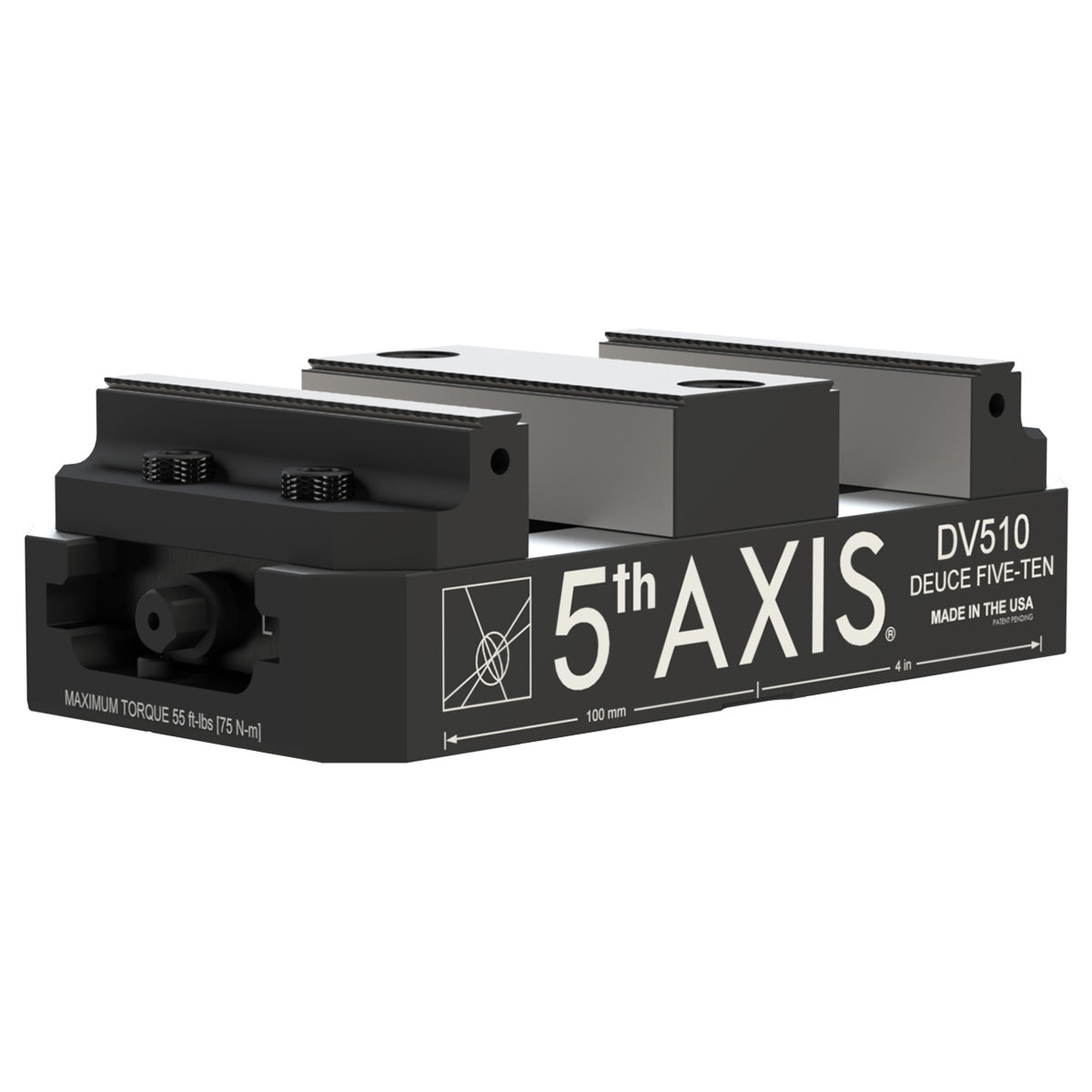

Dual Clamping Vise 126mm x 258mm x 73mm

- Large Double Station Vise

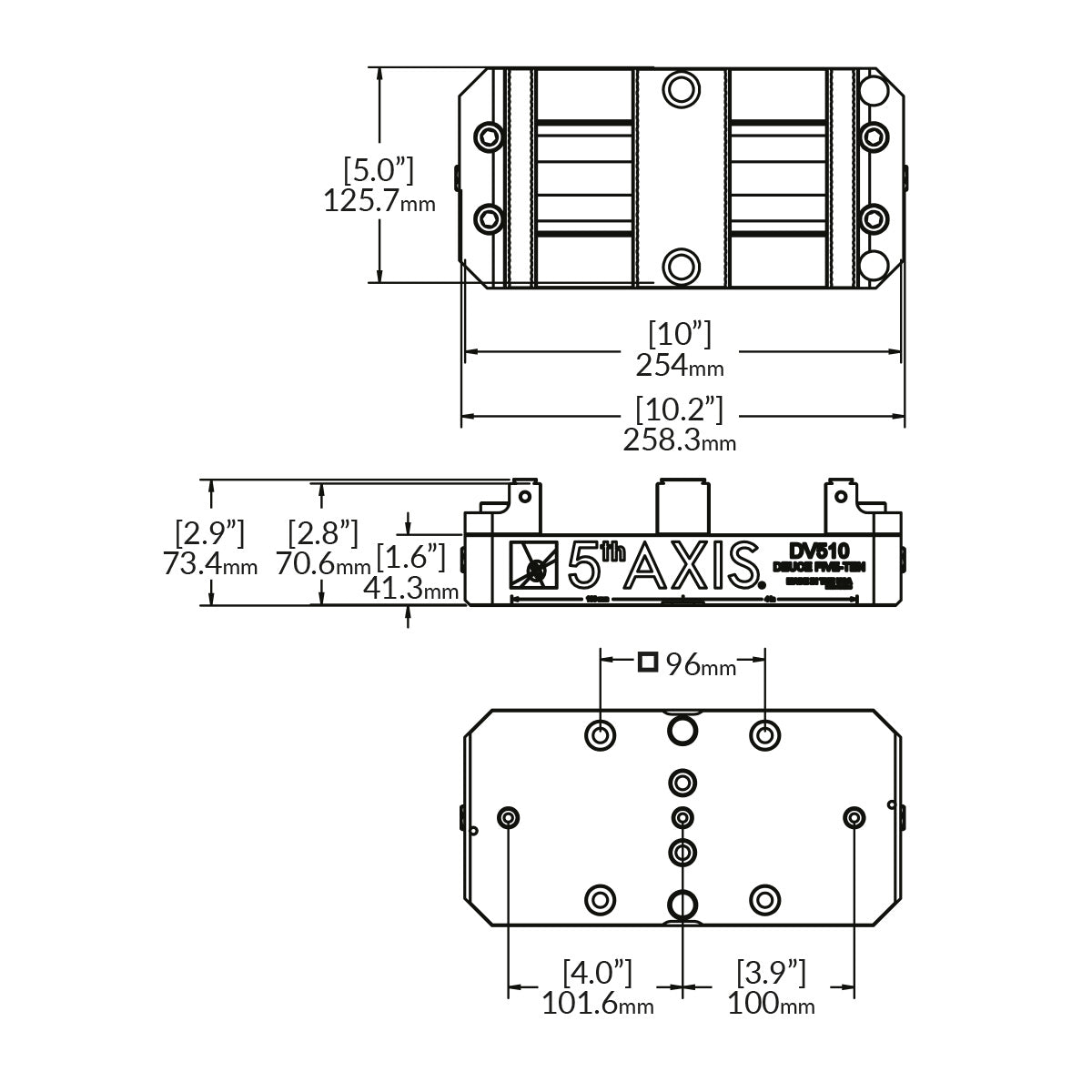

- Size: 125.7mm x 258.3mm x 73.4mm
- RockLock™ compatibility: 96mm
- Wide center jaw (J1)
- Negate variations in stock size with free-floating jaw system
- Convert to single-station fixed jaw for huge clamping range
- 45° dovetail and gripper teeth built into hard jaw
- Size: 125.7mm x 258.3mm x 73.4mm
- Jaw Width: 125.7mm
- Clamping Force: 25.0 kN @ 75 Nm
- Max Torque: 75 Nm
- Clamping Range (Jaws Forward): 0 - 66.7mm
- Clamping Range (Jaws Reversed): 30.9mm - 102.3mm
- Clamping Range (Fixed Jaw, Forward): 0 - 177.5mm
- Clamping Range (Fixed Jaw, Reversed): 56.8mm - 248.7mm
- Zero-point pitch = 96mm
- Diameter of clamping studs = 20mm (PS20F)
