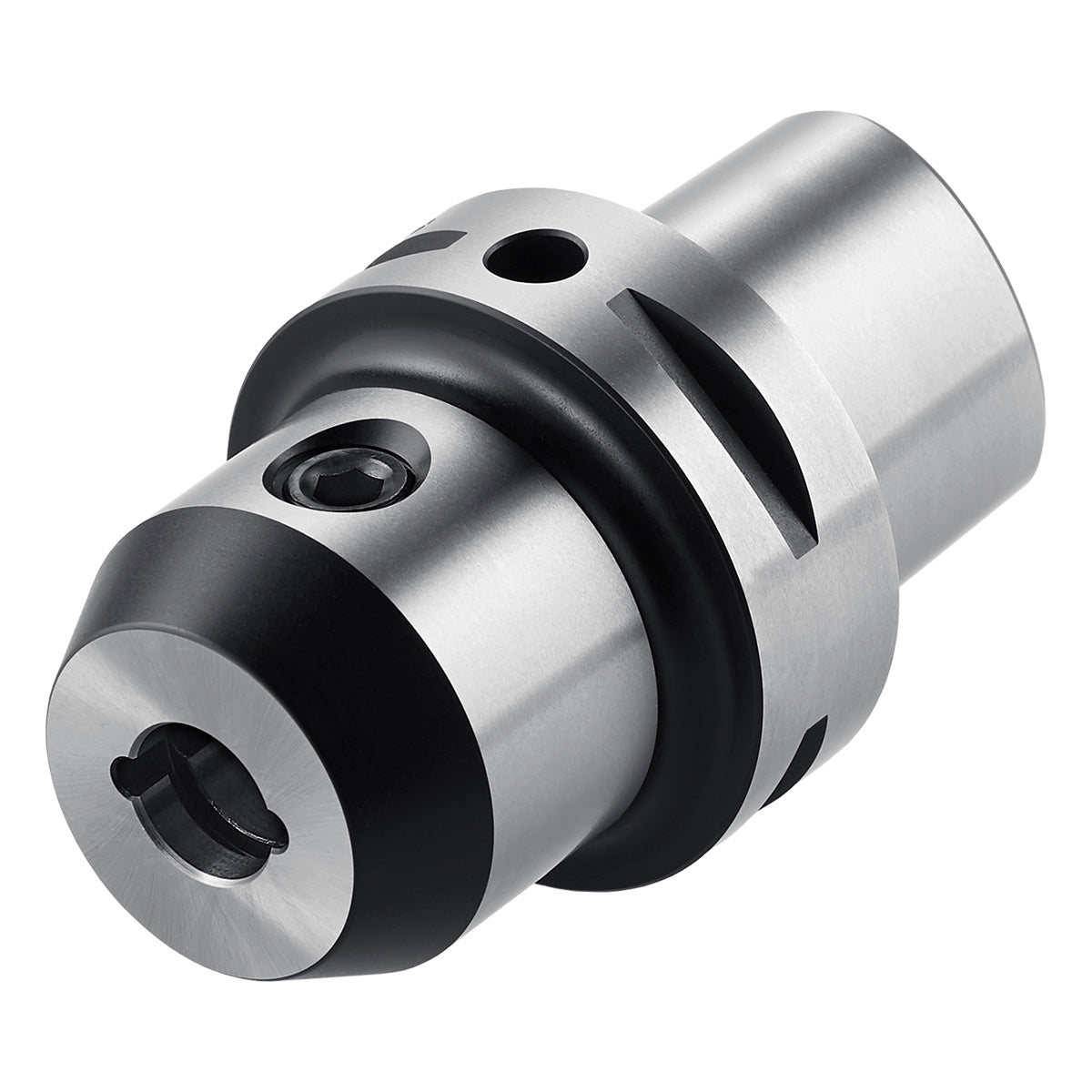

End mill holder Weldon with cooling channels PSK 63 - 06 - 100

End mill holder Weldon with cooling channels PSK 63 - 06 - 100

€289.00
€289.00
Tax included. Shipping calculated at checkout.

Product Details

Application:
For mounting straight-shank tools with lateral flat according to DIN 1835 form B (Weldon).
With coolant channels for optimal coolant at the cutting edge.

Delivery:
With clamping screw

Note:
From DCONWS = 25 on two clamping screws
DCONWS = 6 to 18 with two coolant channels
DCONWS = 20 to 40 with four coolant channels
For tools with through coolant an O-ring must be used.

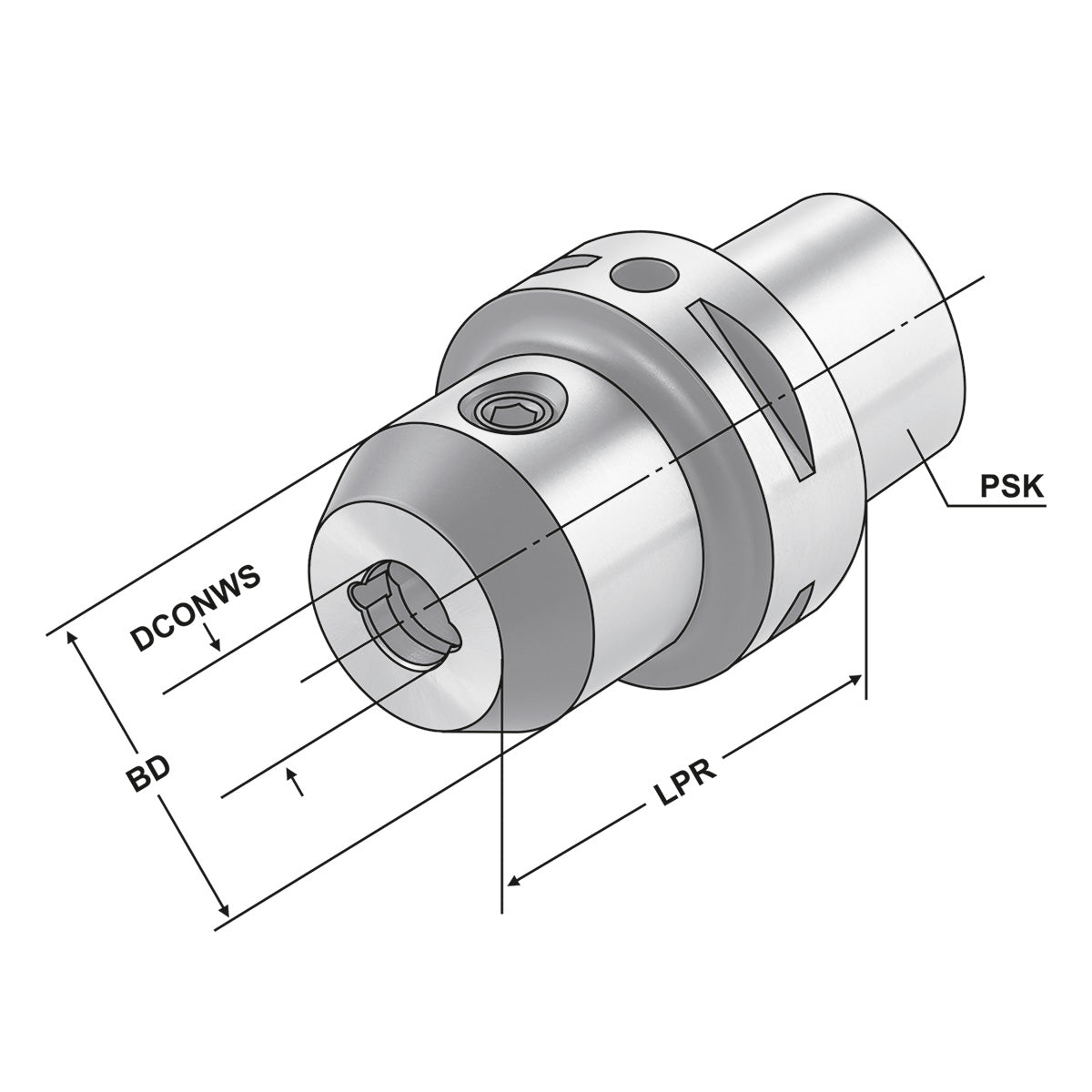

Specifications
PropertySpecification
DCONWS6
BD25
ADINTMSCCS - Polygonschaftkegel
ADINTWSDIN 6359 (Weldon)
Rundlauf< 3µm
TDCONH4
LPR100
AuswuchtgüteG2,5 | 25.000 1/min
CXSCKühlmittelnuten
PSKC6 | PSK 63
Expected delivery date:
30 Nov Usually ready in 6-7 days.
